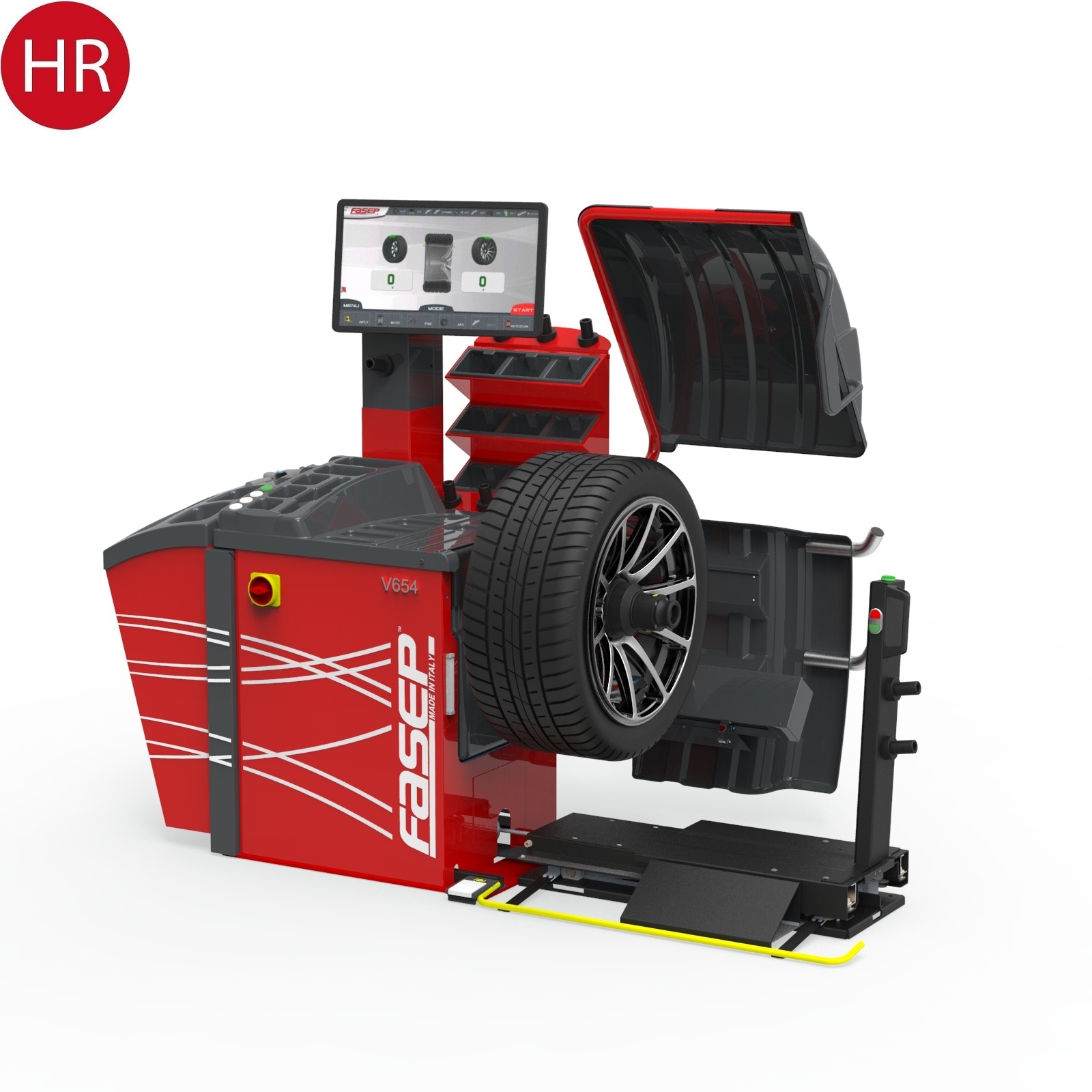

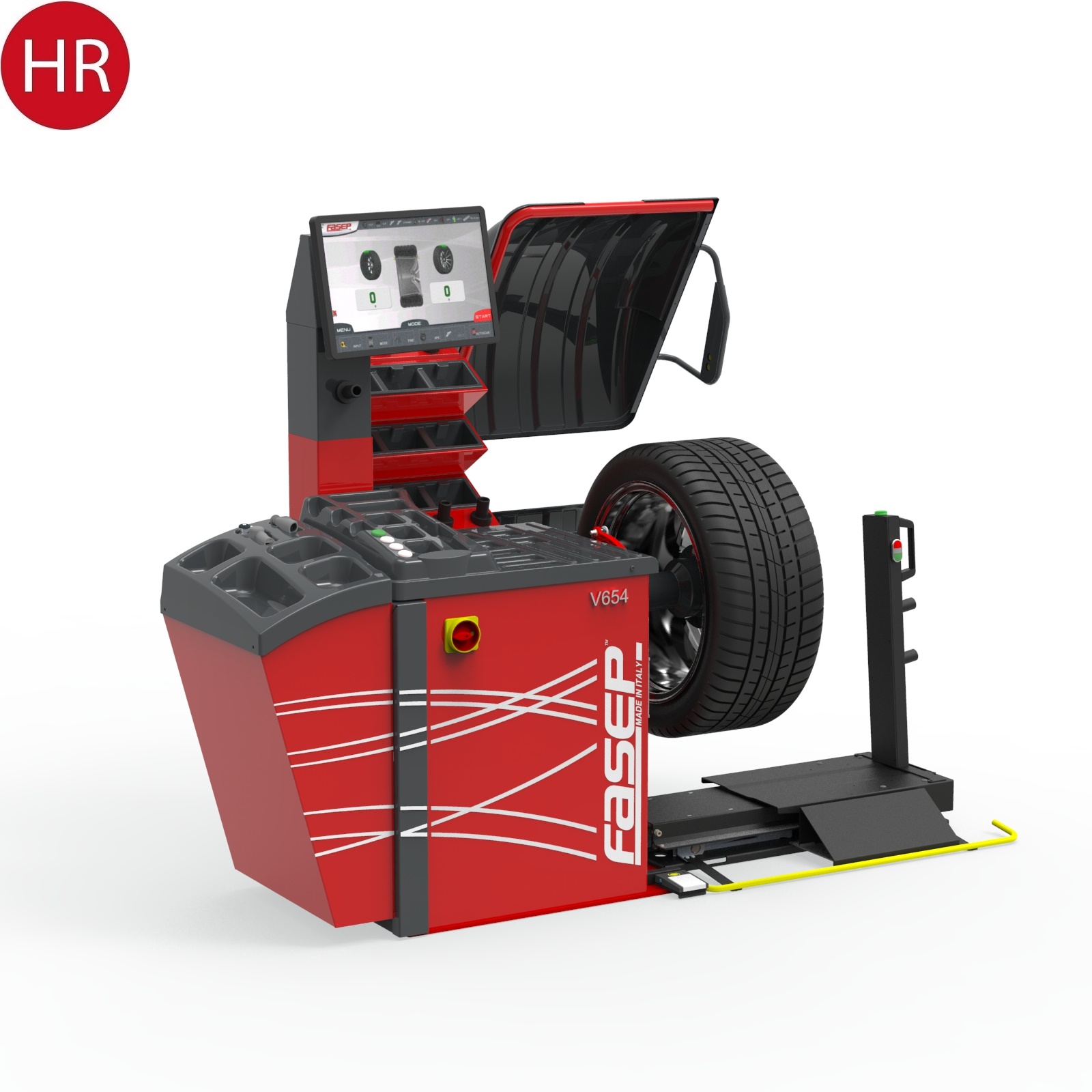

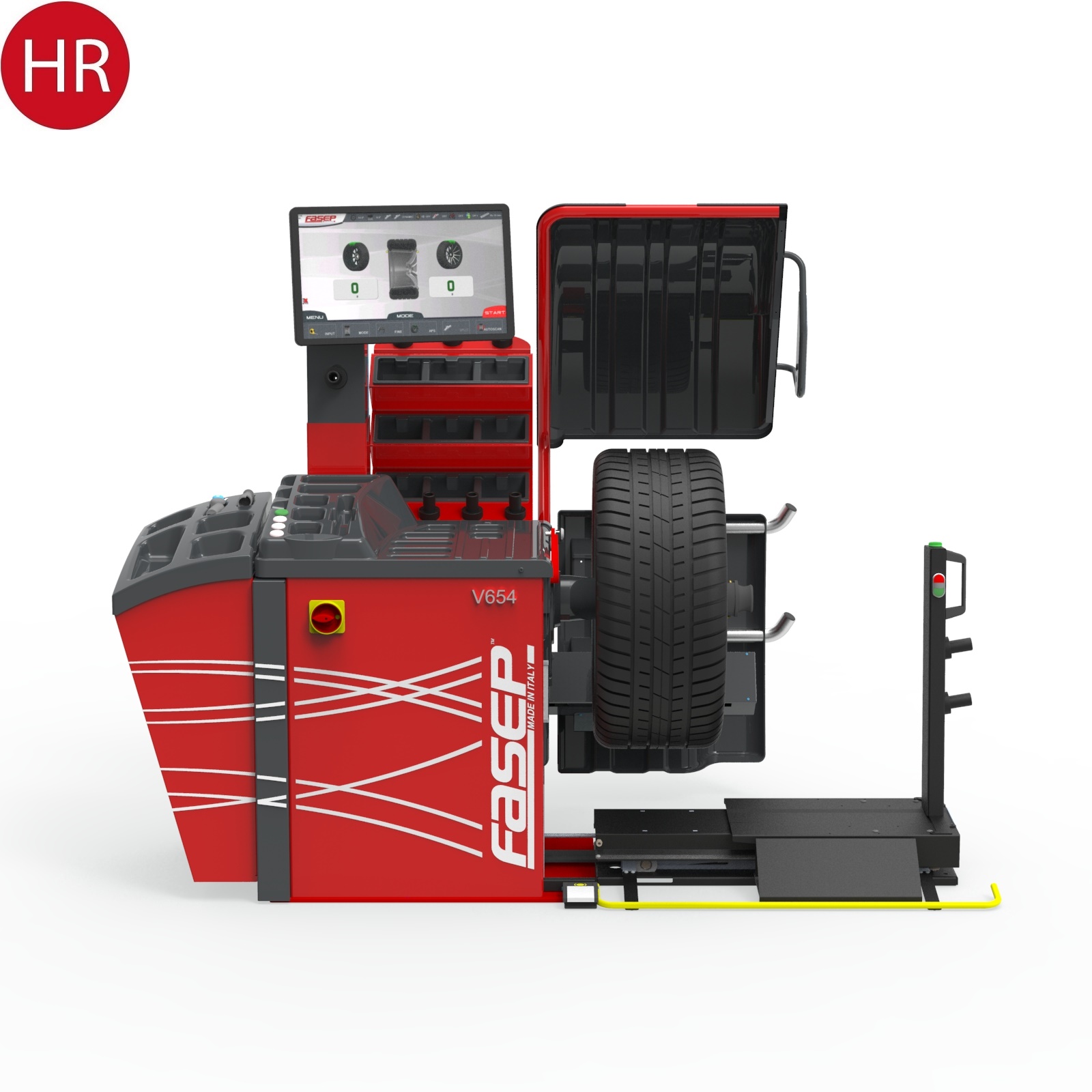

V654 Revolution

The revolution of wheel balancing.
Designed for the tire specialists who have high volumes of work, V654 offers maximum performances.
V654 is built around its automatic Tilting System to grant perfect centering with no efforts.

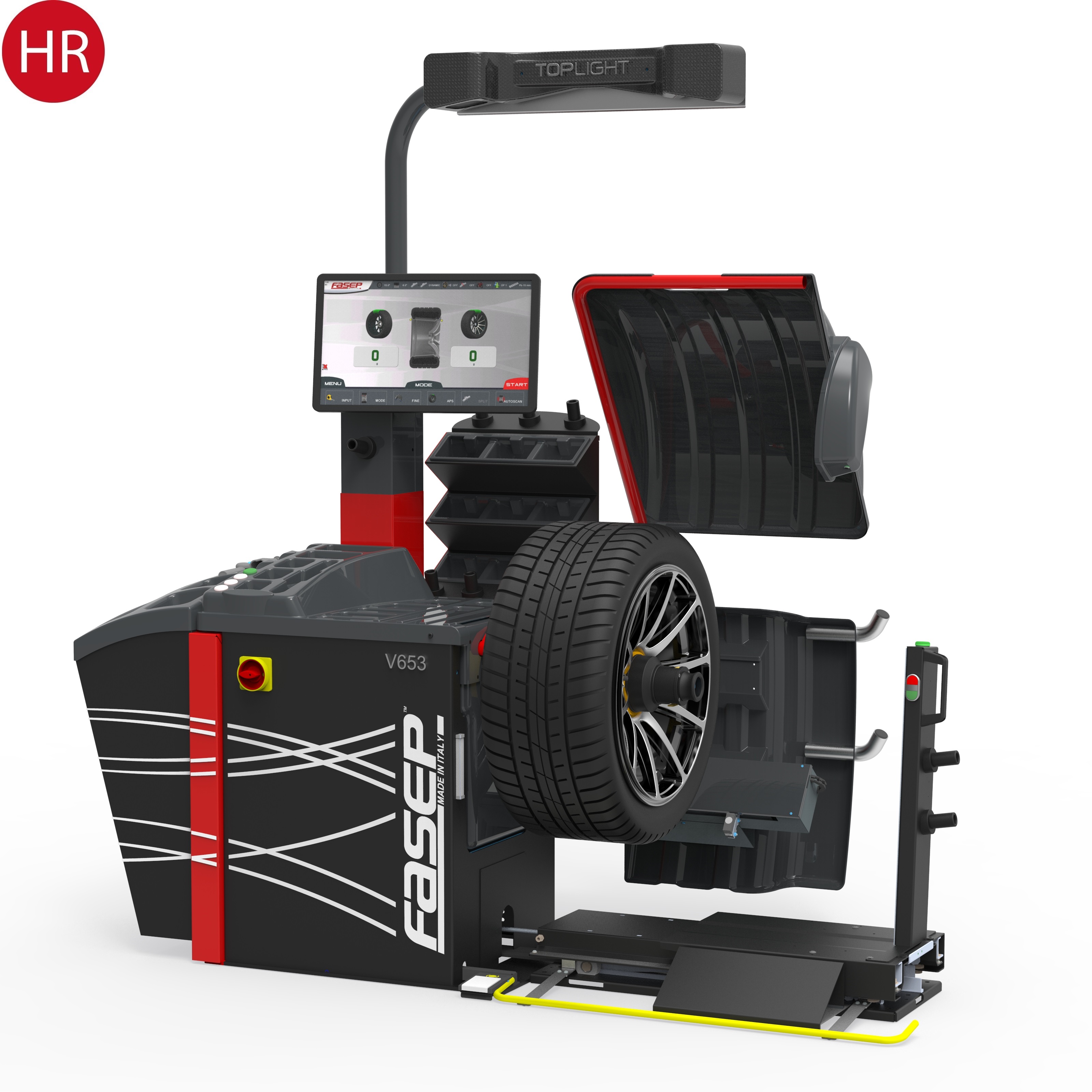

V653 offers all automatic feautures that improve accuracy and speed up the whole wheel balancing process. Based on the Videotronic technology, the balancer is controlled by a PC with Windows CE.

V653 is equipped with the legendary TriSensor with 3 Piezos unbalancing measurement system and with IFS-Tilt system (Integrated-Flange Shaft) for maximum centering accuracy. The HD (Heavy Duty) shaft allows 90kg of maximum weight on the shaft.

is used by customers who need to obtain perfect balancing, relying on the impeccable centering of this machine; it is no coincidence that some companies using V654 are:

Bridgestone Training Centre in Denmark
Goodyear Test Center in Luxembourg

Category: Wheel Balancers

Technical Features

Computerized automatic wheel balancer
Suitable for Car, Vans, SUVs and Light Trucks wheels
16 bit high-tech electronics G3.EXTREME electronic motor control (Inverter)
External Ethernet network connection
3Ph Motor with electronic control (inverter)
Low Speed (98 RPM)
Monitor LCD Touch 22" 16:9
WinCE Operating System
FULL level wheel balancing software
IFS Heavy Duty flange system with Automatic Tilting System (max 90 kg)
TRI.S3NSOR 3 Piezo sensors measuring system
Shaft 40 mm
Shaft height 630 mm
Flange offset 250 mm
Shaft length 210 mm
256 steps position sensor
High basement
Side Cabinet
PL Electro-Pneumatic Lock
EMB Electromagnetic Brake (Lock-in-position)
Automatic Start-Stop
Stop-on-position Automatic positioning system APS2 (with run-time correction) (G3 only)
3D Touchless data input (distance+diameter+width)
LASER Point system for application of stick-on-weights
Wheel-guard with automatic start of wheel spin
ABS weights holder (5+5 compartments for weights, 3 for cones, 1 for tools)
Lower Wheel-guard
Back-mounted weight compartment
LED LIGHT - Led lighting system inside the rim
Electronic Integrated Wheel lifter (90 kg)
Self Calibration with Calibration weight
Self Diagnostic
AFC (Automatic Flange Calibration)
ALU programs (stick-on weights)
ALU-SE / Alu-PAX program for application of stick-on weights
AUTOSELECT2 function (automatic balancing mode selection DYN-ALU)
Tire-Rim Dynamic Unbalance Match Programme (Optimization)
ASF Alu Special Functions (ALU-Mat, ALU-Din)
MOTO program
User Setup
SPLIT program (Hidden Weights)
FAST program
MARS program for Static minimization
DOUBLE OPERATOR program
STATS program
WOW Weight Saving function
FCC program
Cones 42-98 mm
Max wheel weight 90 kg
Rim max diam. 10-26"
Max wheel diam 864 mm (34") (with wheel-guard)
Garanzia On Site

Optional accessories

V056
INST. SPIEG. c/o CLI (EQ.VIDEO)
V214
EXT WARRANTY FOR VIDEO WB
V150
EXT GARANZIA EQUILIBRATRICE VIDEO
3SW134.001
CONNECT.WB+12 4.0 - 3y
4M3233
TELAIO RIALZO BASAMENTO V65x B441
3M833
SCANNER SONAR 3D.Scan
4M0968.002
CP.40 CONO FUORISTRADA 94-114.5 Interno
3M798
SCANNER SONAR
9E3933-1
WI-FI EXTENDER AC750
9M3808-2
SOLLEVARUOTE PNEUMATICO
3M461.002
FLANGIA UNIVERSALE FUL-HD.40 Completa
3M3462
PROLUNGA 24"-28" BRACCETTO ALU-S
3M2612.002
SET BOCCOLE DI CENTRAGGIO C1-C6 ø40

Catalogs

Media

Info

Other versions

E591.008
V653.H.G3.PL.ULX 230/50-60/1
E591.009
V653.H.G3.PL.UTX 230/50-60/1

HIGHLIGHTS

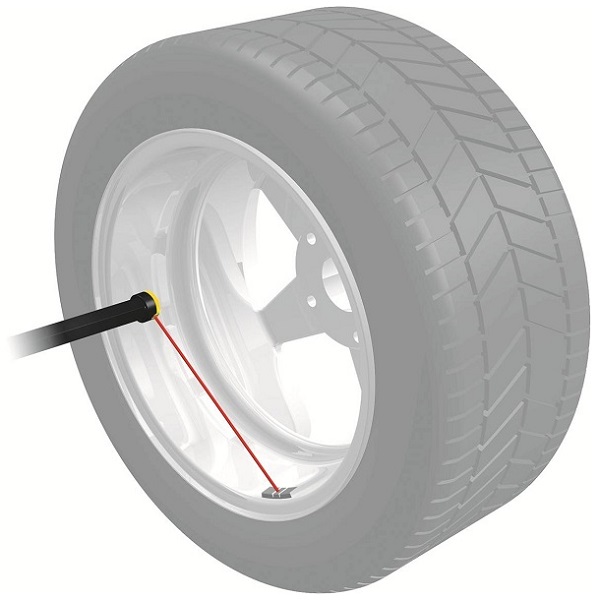

LASER POINT

Apply the stick-on weight, very accurately, with no chance of mistake even by a few millimeters as the laser is just a dot.
Identify, from the start, that is during input of rim dimensions the point of application of weights to avoid areas of the rim are not flat.

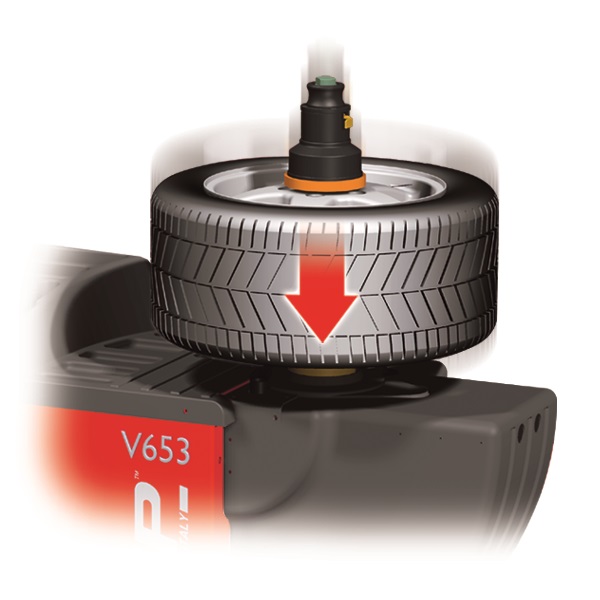

TILT SYSTEM

Automatic tilting system of the shaft into a vertical position for perfect wheel centring.

ELECTROPNEUMATIC WHEEL LOCK

It allows extremely precise wheel locking and operation even in the event of a pneumatic system malfunction or lack of compressed air.
In short, this system allows correct centring and ensures locking / unlocking of the wheel under all conditions.

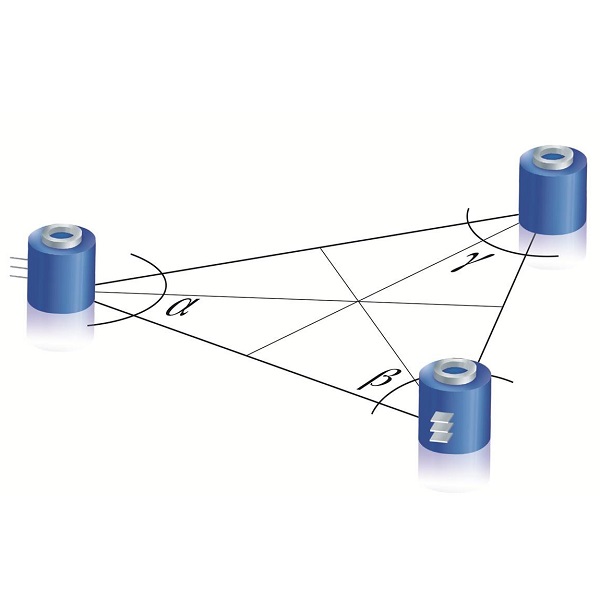

TRIS3NSOR

Exclusive FASEP mechanical system for measuring vibrations.
The system consists of 3 Piezo sensors that make it stable by itself and therefore allows for a smaller cross-section of mechanical constraints.
Please check this document for more information.

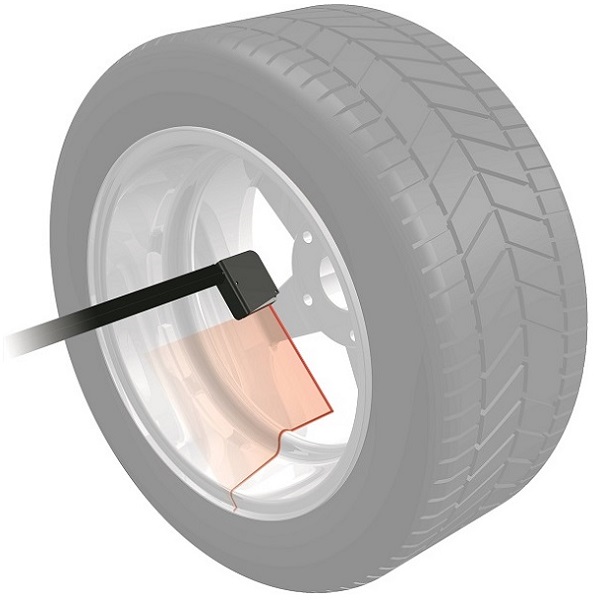

3D TOUCHLESS INPUT

Allows touchless input of wheel data (distance + diameter + width) by laser, for both iron and alloy wheels.
