RAE.2102.22
Automatic, strong and reliable, up to 23”.
RAE.2102.22 is an automatic tire changer for wheels having rim size from 10″ to 23″. Robustness and reliability are the key words for this tire changer, which, thanks to accessories that allow it to work on low-profile wheels, is the tire changer that gives the maximum with a limited outlay.
Category: Tire Changers
Technical Features
- Automatic Tire Changer
- Suitable for Car, Vans, SUVs and Light Trucks wheels
- Self-centering turntable with 4 clamps and 2 cylinders
- Steel Plate thickness 12mm
- 1 speed Motor
- Tilt-back column (pneumatic)
- Pneumatic lock of the mounting head
- Spring control of the mounting head
- Bead-breaker with single-effect cylinder
- Free-moving bead breaker tool with plastic protection
- Tire inflation gun with manometer gauge
- Set of plastic protections for alloy rims
- Tire Lever
- 36 mm hexagonal shaft
- Pressure regulator with filter and manometer
- Air lubricator (automatic)
- Inflation pressure limiter (4 bar)
- Bead breaking force 2800 kg
- Bead breaking force 2900 kg
- Max rotation torque 1,08 kN (110Kgm)
- Rim max diam. 10-23"
- Max wheel diam 1000 mm (39")
- Max rim width 320 mm (12,5")
- Noise < 70 dB (A)
- Warranty On Center
- Standard accessories in details
Optional accessories
-
V058
INST. SPIEG. c/o CLI SMONT.VETTURE-MOTO -
V145
EXT GARANZIA SMONTAGOMME VETTURE -
V153
EXT WARRANTY FOR CAR TIRE CHANGERS -
3SW141
CONNECT.TC+12 4.0 -
SA294
KIT Tubeless BLAST -
SA045
SISTEMA PRESS PRO.210x, 2115 -
SA088
SISTEMA PRESS TECH RAE.2102-2115 -
SA058
PEDANA A RULLI -

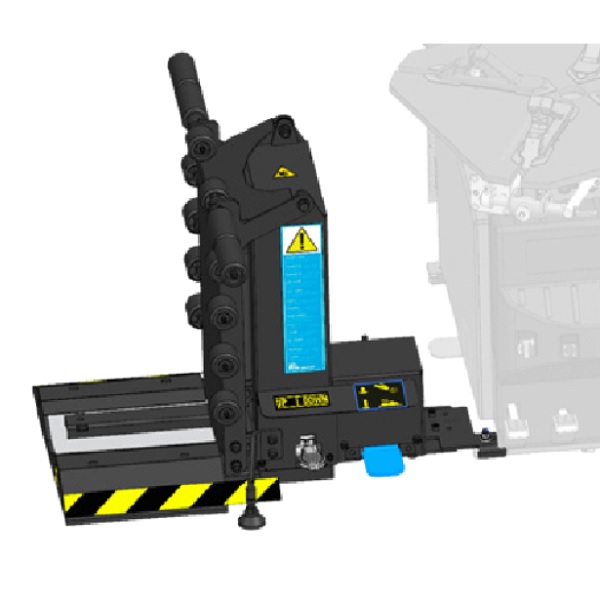

SA355
PEDANA SOLLEVAMENTO PNEUMATICA RAE.2102 -
SA325
VANO PORTAUTENSILI RAE.21xx, RASE.21xx -
SRA192.001
UTENSILE CERCHI A RAZZE SPORGENTI -
SA233.006
SET PROTEZIONE PER GRIFFE (20 pezzi) -
V144.001
SUPPLEMENTO VERNICIATURA TC -
SA046
SERIE ATTACCHI UNIV. 5"-25" MOTO (4pz) -
SA327
KIT ADATTATORI 2" (4pz) -
SA049
RULLO SCOOTER -
SA069
SERIE ATTACCHI RUOTE 6" (4pz) -
V524
GONFIATORE ELETTRONICO A PARETE (AUTO) -
SRA960
VASO GRASSO PER MONTAGGIO/SMONTAGGIO -
SA295
BAZOOKA JET INFLATOR 6lt -
SA229.003
PROTEZIONE BORDO CERCHIO (3pz) -
SA059
DISTANZIALE PER APPOGGIO STALLONATORE -
SRA194
UTENSILE RUOTE SCOOTER 8" -
SA193.001
UTENSILE IN PLASTICA ATTACCO RAPIDO -
SA231.002
KIT ATTACCO RAPIDO UT.INTEGRALE (1 T.)
Catalogs
Media
Info
SIGLAART: RAE.2102.22 (10-23") CE 400/50-60/3
CODART: S199.002
TIPOART: RAE
HW: 1125
SW: TCA
POWER: 380-415 VAC 50-60Hz 3Ph
Other versions
-
S199.018
RAE.2102.MOTO CE 230/50/1 -
S199.014
RAE.2102.22 (10-23") CE 230/50/1 -
S199.003
RAE.2102.22.2V (10-23") CE 400/50/3
