NoContact
NoContact - Wheel Alignment robot (without contact)
With NoContact Wheel Alignment System you can revolutionize the way yo measure wheel alignment.
- No target on the wheel needed, compared to normal wheel aligners
- No need to move vehicle back and forth to compensate measurements
- Accuracy of measurements comparable to infrared / CCD wheel aligners (much better than traditional 3D accuracy)
- Automatic positioning of cameras
Zancolli Pneumatici is one of the customers who has already chosen NoContact wheel aligner.
Click here for the Sales Guide (reserved access)
- - PC-based wheel aligner
- - Stationary Deluxe Totem
- - Monitor LCD 43"
- - WinXP / Win7 Operating System
- - MAXI level wheel alignment software
- - Databank upgradable via internet
- - Guided wheel alignment procedure with 3d animations
- - Toe-curve adjustment program
- - Colour printer
- - USB interface
- - Touchless measuring system
- - 4 infrared cameras
- - Robot positioning system for cameras
- - 4,5m rails for camera system
- - Passive reflection markers to be applied on tire wall
- - WiFi transmission system
- - Battery charger integrated on rail
- - Heavy Duty Turntables (1000 kg)
- - Compatibile Industria 4.0
- - Steering lock
- - Brake pedal depressor
- - Garanzia On Site
- V297 - INST. SPIEG. c/o CLI (ASS. NoContact)
- V358 - EXT GARANZIA ASSETTO NOCONTACT
- V359 - EXT WARRANTY FOR NoContact WA
- 3SW135.001 - CONNECT.WA+12 4.0 - 3y
- 3M4345.002 - KIT PROLUNGA BINARIO WiFi (2x2,5 mt)
- 3M4461.002 - KIT PROLUNGA BINARIO LIGHT (2x2mt)

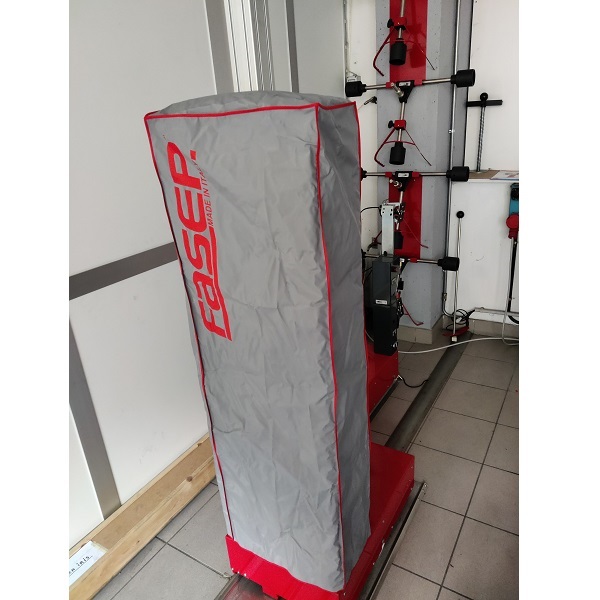

- 9E4087 - KIT COPERTINA NO CONTACT DX e SX
- V542 - INCLINOMETRO ROMESS ROE 3018
SIGLAART: NoContact.T.VNPH WiFi
CODART: A632.007
TIPOART: V.Top
HW: 500
SW: WA3D
POWER: 200-240 VAC 50-60Hz 1Ph INV
WEIGHT: Gross Weight 360.00 Kg / Net Weight 240.00 Kg
SHIPPING VOLUME: 75 cm / 260 cm / 112 cm
- A632.002 - NoContact.VNPH
- A632.005 - NoContact.VNPH WiFi
- A632.006 - NoContact.T.VNPH
- A632.010 - NoContact.VNPH PIT WiFi
