V684 Ninja

Top Light! Light your wheel!
V684 offers everything All-Inclusive. Touch-Screen for easily working, three lasers for the application of each type of weight with maximum precision, 3D. Scan for automatic control of the geometry of the tire and rim, G3. Extreme electronics for maximum working speed. TOP-LIGHT above the machine, with two light points to improve brightness in the working area, and two laser to show with great accuracy the position of the weight to be applied on the tire clothespin.
New layout of the controls Pneu-lock and Brake, with two new pedals, which allow increased ease of use. The heart of the balancer is built around the TriSensor System, a FASEP exclusive design, and IFS System (integrated-flange shaft) for maximum centering accuracy.

Category: Wheel Balancers

Technical Features

Computerized automatic wheel balancer
Suitable for Car, Vans, SUVs and Light Trucks wheels
16 bit high-tech electronics G3.EXTREME electronic motor control (Inverter)
USB port for program updates and diagnostics
External Ethernet network connection
3Ph Motor with electronic control (inverter)
Low Speed (98 RPM)
Second Generation Monitor LCD Touch 22" 16:9
WinCE Operating System
FULL level wheel balancing software
IFS Heavy Duty flange system (max 90 kg)
TRI.S3NSOR 3 Piezo sensors measuring system
Shaft 40 mm
Shaft height 700 mm
Flange offset 250 mm
Shaft length 210 mm
256 steps position sensor
Easy ALU basement
MAXI cabinet
PL Electro-Pneumatic Lock
EMB Electromagnetic Brake (Lock-in-position)
Automatic Start-Stop
Stop-on-position Automatic positioning system APS2 (with run-time correction) (G3 only)
3D Sonar automatic data input (distance + diameter + width)
LASER Point system for application of stick-on-weights
Wheel-guard with automatic start of wheel spin
Carbon weights holder (11 compartments for weights, 3 for cones, 1 for tools)
Lower Wheel-guard
Back-mounted weight compartment
LED LIGHT - Led lighting system inside the rim
TOP LIGHT - Clip-on weight laser indication and working zone lighting system
Self Calibration with Calibration weight
Self Diagnostic
AFC (Automatic Flange Calibration)
ALU programs (stick-on weights)
ALU-SE / Alu-PAX program for application of stick-on weights
AUTOSELECT2 function (automatic balancing mode selection DYN-ALU)
Tire-Rim Dynamic Unbalance Match Programme (Optimization)
ASF Alu Special Functions (ALU-Mat, ALU-Din)
MOTO program
User Setup
SPLIT program (Hidden Weights)
FAST program
MARS program for Static minimization
DOUBLE OPERATOR program
STATS program
WOW Weight Saving function
FCC program
Cones 42-98 mm
Max wheel weight 90 kg
Rim max diam. 10-26"
Max wheel diam 864 mm (34") (with wheel-guard)
Garanzia On Site

Optional accessories

V362
INST. SPIEG. c/o CLI (EQ.VIDEO TOP)
V157
EXT WARRANTY FOR VIDEO WB
V149
EXT GARANZIA EQUILIBRATRICE VIDEO
9M3617
SOLLEVARUOTE CENTRAGGIO AUTOMATICO

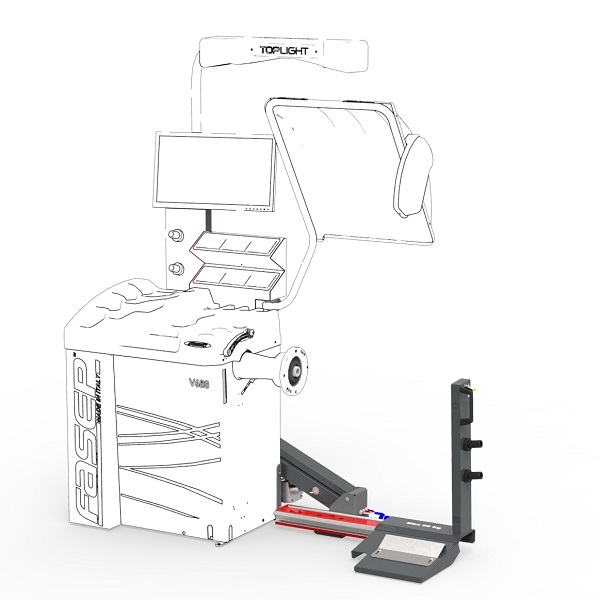

3M914.001
SMARTLIFT 2 LT VETTURE
3M833
SCANNER SONAR 3D.Scan
3M798
SCANNER SONAR
3M461.002
FLANGIA UNIVERSALE FUL-HD.40 Completa
3M3462
PROLUNGA 24"-28" BRACCETTO ALU-S
9E3933-1
WI-FI EXTENDER AC750
3M2612.002
SET BOCCOLE DI CENTRAGGIO C1-C6 ø40
3M1054.002
KIT KF.40 FUORISTRADA E FURGONI
2M0968.002
CF.40 CONO FUORISTRADA 94.5-137

Catalogs

Media

Info

Other versions

HIGHLIGHTS

LASER POINT

Apply the stick-on weight, very accurately, with no chance of mistake even by a few millimeters as the laser is just a dot.
Identify, from the start, that is during input of rim dimensions the point of application of weights to avoid areas of the rim are not flat.

TOP-LIGHT

Two light points to improve brightness in the working area, and two lasers line to show with great accuracy the position of the weight to be applied on the rim.

ELECTROPNEUMATIC WHEEL LOCK

It allows extremely precise wheel locking and operation even in the event of a pneumatic system malfunction or lack of compressed air.
In short, this system allows correct centring and ensures locking / unlocking of the wheel under all conditions.

TRIS3NSOR

Exclusive FASEP mechanical system for measuring vibrations.
The system consists of 3 Piezo sensors that make it stable by itself and therefore allows for a smaller cross-section of mechanical constraints.
Please check this document for more information.

3D SONAR INPUT

It allows automatic input of the wheel width via sonar on the wheel guard.
