RAE.2102.MOTO
Automatic up to 23″.
RAE.2102.MOTO is a automatic tire changer with swing arm, suitable for motorcycle wheels with 5″-23″ rim (max wheel width 240 mm/9,5″).
Category: Tire Changers
Technical Features
- Automatic Tire Changer
- Suitable for Motorcycle wheels, go-kart, turf, scooter and, also ATV wheels
- Self-centering turntable with 4 clamps and 2 cylinders
- Special clamps for motorcyles
- Steel Plate thickness 10mm
- 1 speed Motor
- Tilt-back column (pneumatic)
- Pneumatic lock of the mounting head
- Spring control of the mounting head
- Bead-breaker with single-effect cylinder
- Free-moving bead breaker tool with plastic protection
- Mounting / demounting head specific for Motorcycles
- Tire Lever
- 36 mm hexagonal shaft
- Pressure regulator with filter and manometer
- Inflation pressure limiter (4 bar)
- Bead breaking force 2800 kg
- Max rotation torque 1,08 kN (110Kgm)
- Rim max diam. 5-23"
- Max wheel diam 1000 mm (39")
- Max wheel width 240 mm (9,5")
- Noise < 70 dB (A)
- Warranty On Center
- Standard accessories in details
Optional accessories
-
V058
INST. SPIEG. c/o CLI SMONT.VETTURE-MOTO -
V145
EXT GARANZIA SMONTAGOMME VETTURE -
V153
EXT WARRANTY FOR CAR TIRE CHANGERS -
SA088
SISTEMA PRESS TECH RAE.2102-2115 -
SA045
SISTEMA PRESS PRO.210x, 2115 -
SA294
KIT Tubeless BLAST -
SA058
PEDANA A RULLI -
SA325
VANO PORTAUTENSILI RAE.21xx, RASE.21xx -
SRA194
UTENSILE RUOTE SCOOTER 8" -
SRA960
VASO GRASSO PER MONTAGGIO/SMONTAGGIO -
SA229.003
PROTEZIONE BORDO CERCHIO (3pz) -
SA059
DISTANZIALE PER APPOGGIO STALLONATORE -

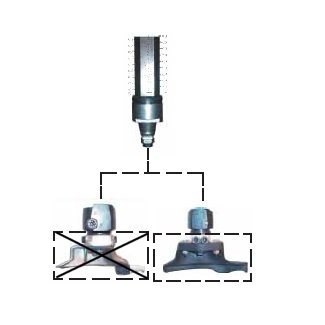

SA231.002
KIT ATTACCO RAPIDO UT.INTEGRALE (1 T.) -
SRA192.001
UTENSILE CERCHI A RAZZE SPORGENTI -
V524
GONFIATORE ELETTRONICO A PARETE (AUTO) -
SA233.006
SET PROTEZIONE PER GRIFFE (20 pezzi)
Catalogs
English CatalogueMedia
Info
SIGLAART: RAE.2102.MOTO CE 400/50-60/3
CODART: S199.017
TIPOART: RAE
HW: 1125
SW: TCM
POWER: 380-415 VAC 50-60Hz 3Ph
Other versions
-
S199.018
RAE.2102.MOTO CE 230/50/1
